MEC Micro 2032 #20100116 – 20ft Used Electric Scissor Lift for Sale
Product Specs
Cost: $14,500 USD
Working Height (Indoor): 26.08 ft
Working Height (Outdoors): 22 ft
Platform Height (indoors): 20.08 ft
Platform Height (Outdoors): 16 ft
Platform Height (Stowed): 3.5 ft
Platform Length: 7.42 ft
Platform Length (Extended): 10.42 ft
Deck Extension Length: 3 ft
Platform Width: 2.67 ft
Guardrail Height: 3.58 ft
Toeboard Height: 6 in
Height (Stowed): 7.17 ft
Height Rails Folded: 5.92 ft
Width: 2.67 ft
Wheelbase: 6.08 ft
Ground Clearance (Center): 5 in
Ground Clearance (Pothole Guards Deployed): 0.9 in
Maximum Occupancy: 2/1 person(s)
Lift Capacity: 800 lbs
Lift capacity with Deck Extended: 250 lbs
Maximum Drive Height: 20.08 ft
Drive Speed (Stowed): 2 mph
Drive Speed (Raised): 0.5 mph
Gradability (Stowed): 30 %
Turn Radius (Inside): 0 ft
Turn Radius (Outside): 7 ft
Lifting Speed: 41/33 sec
Tilt Sensor Activation: 3/1.5 °
Tire Dimensions (non-marking): 15x5 in

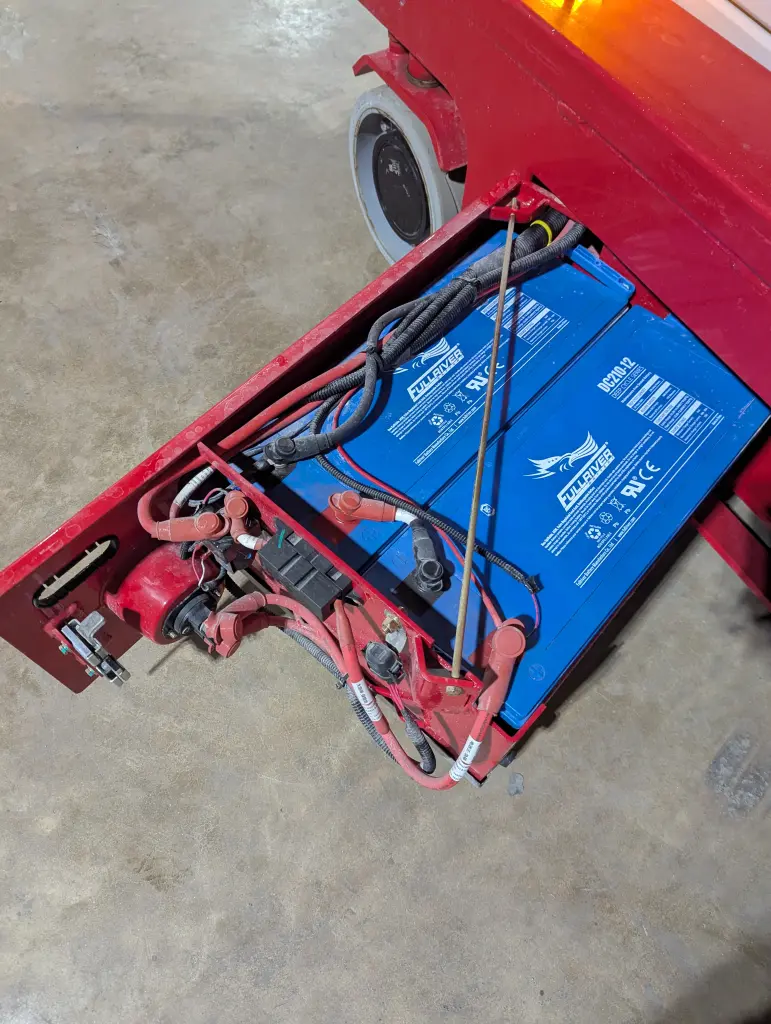

Battery Power: 24 V DC
Hydraulic Tank Capacity: 4.5 gal
Weight: 4038 lbs
Maximum Tire Load: 1692 lbs
Ground Contact Pressure: 111 psi
Occupied Floor Pressure: 247 psf
Sound Pressure Level (Ground Workstation): <70 dBA
Sound Pressure Level (Platform Workstation): <70 dBA
Vibration: <8.18 ft/s^2
